Technical Specifications

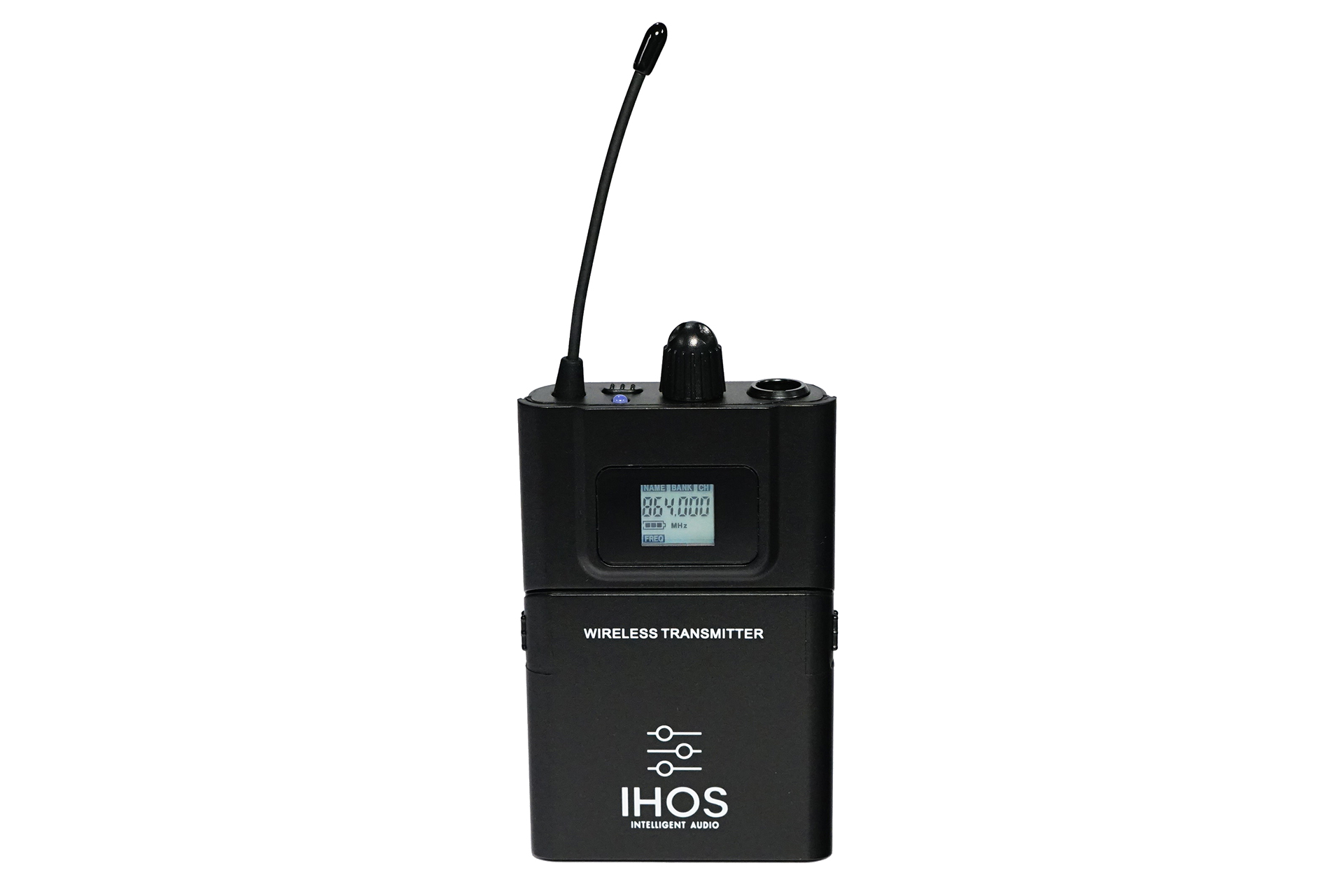

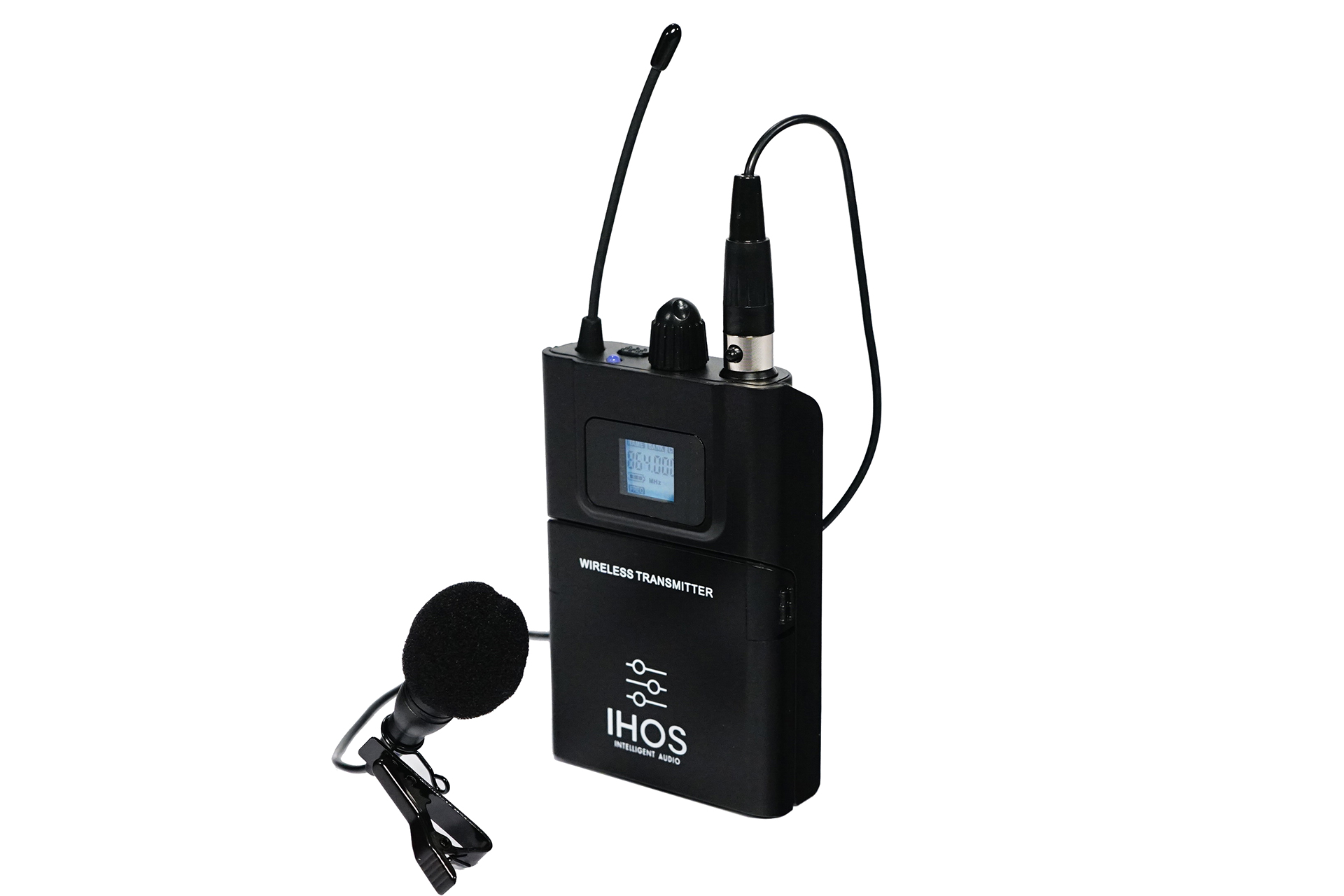

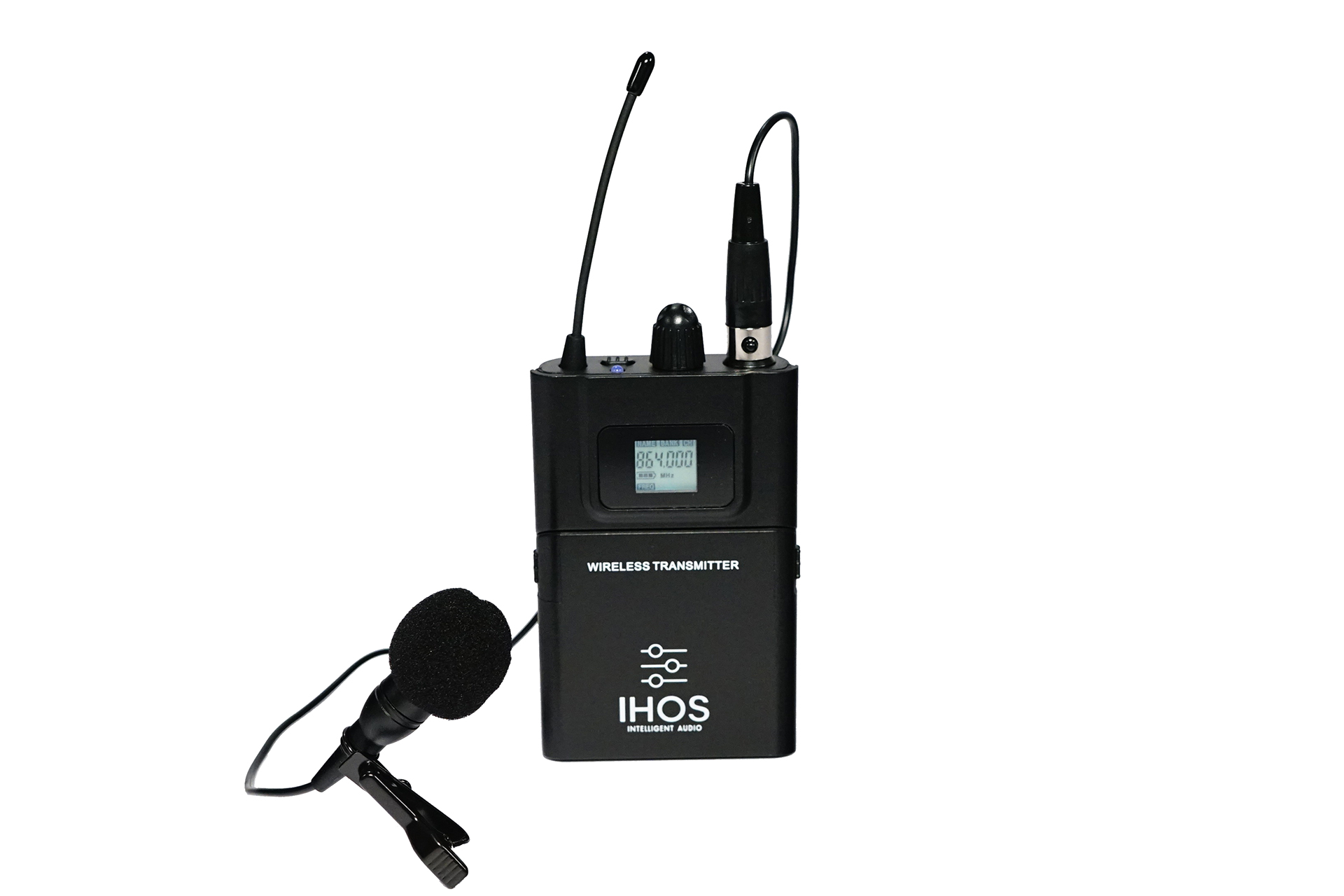

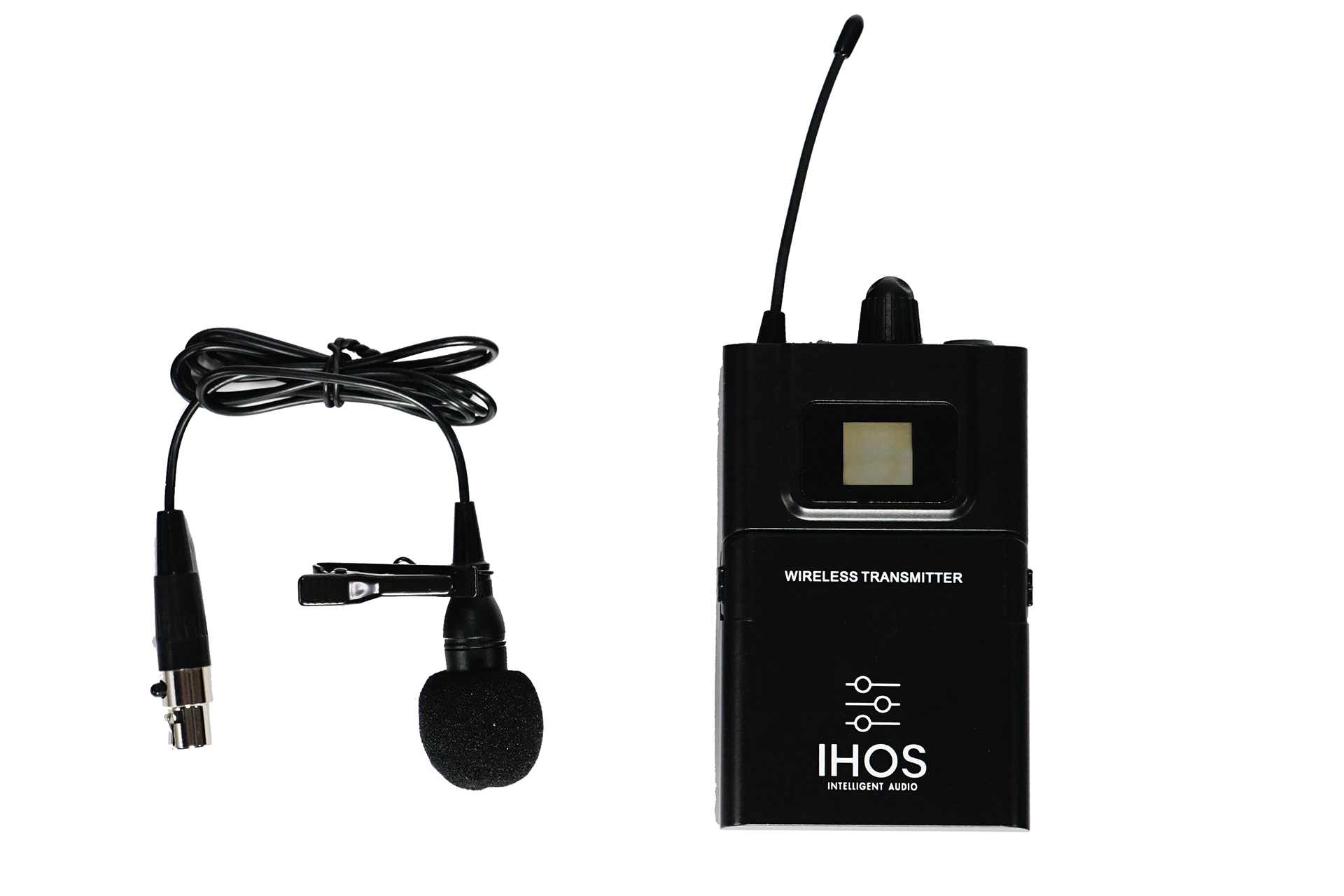

Transmitter
Frequency Range: 863-865MHz
Transmission Method: FM, Mono
Transmitter Power: 5/10/30/100mW
Frequency Response: 50Hz-17KHz
Total Harmonic Distortion: <0.5% at 1KHz
Deviation: 45KHz
Input impedance: 32ohms
Power Supply: DC12V-18V / 500mA

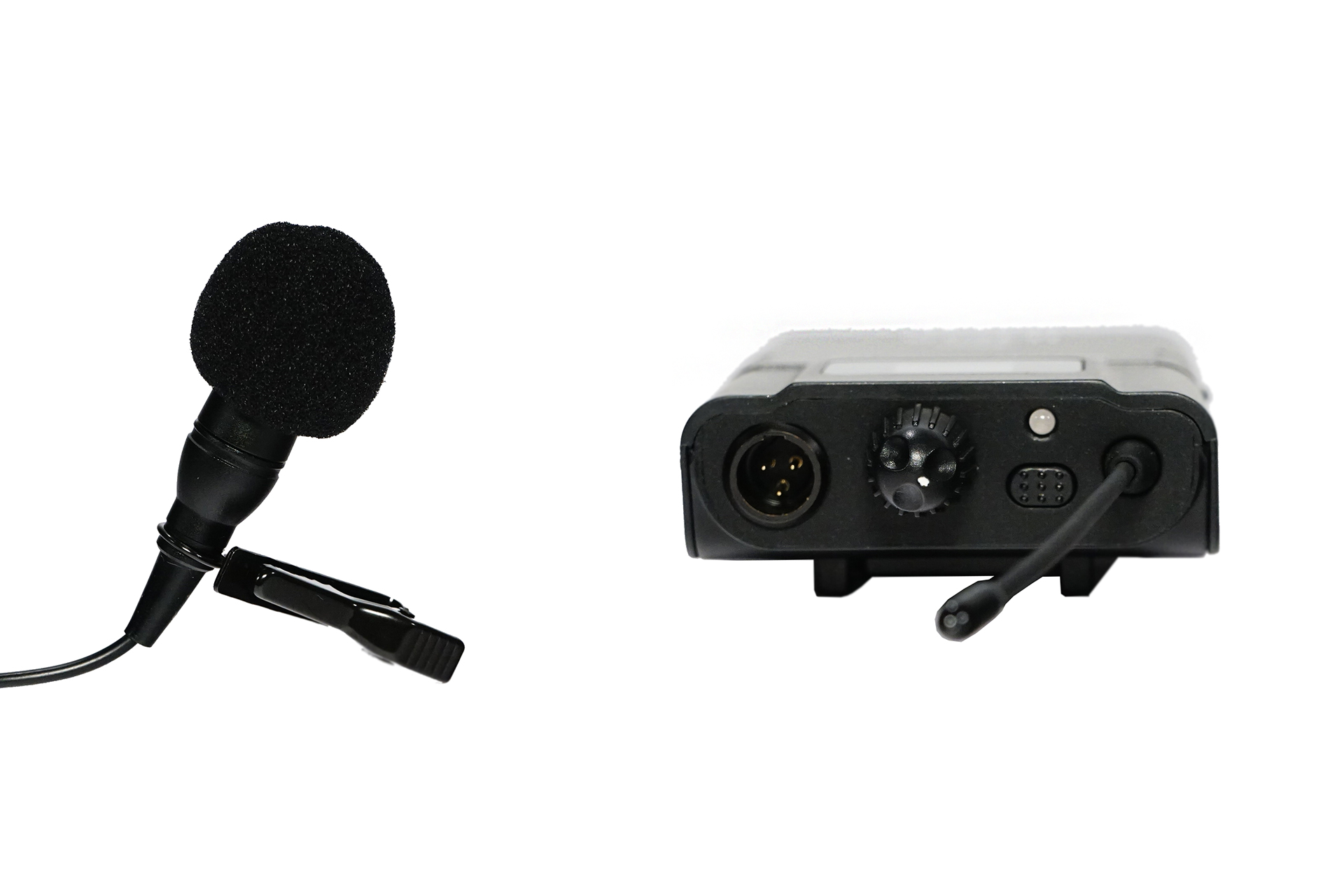

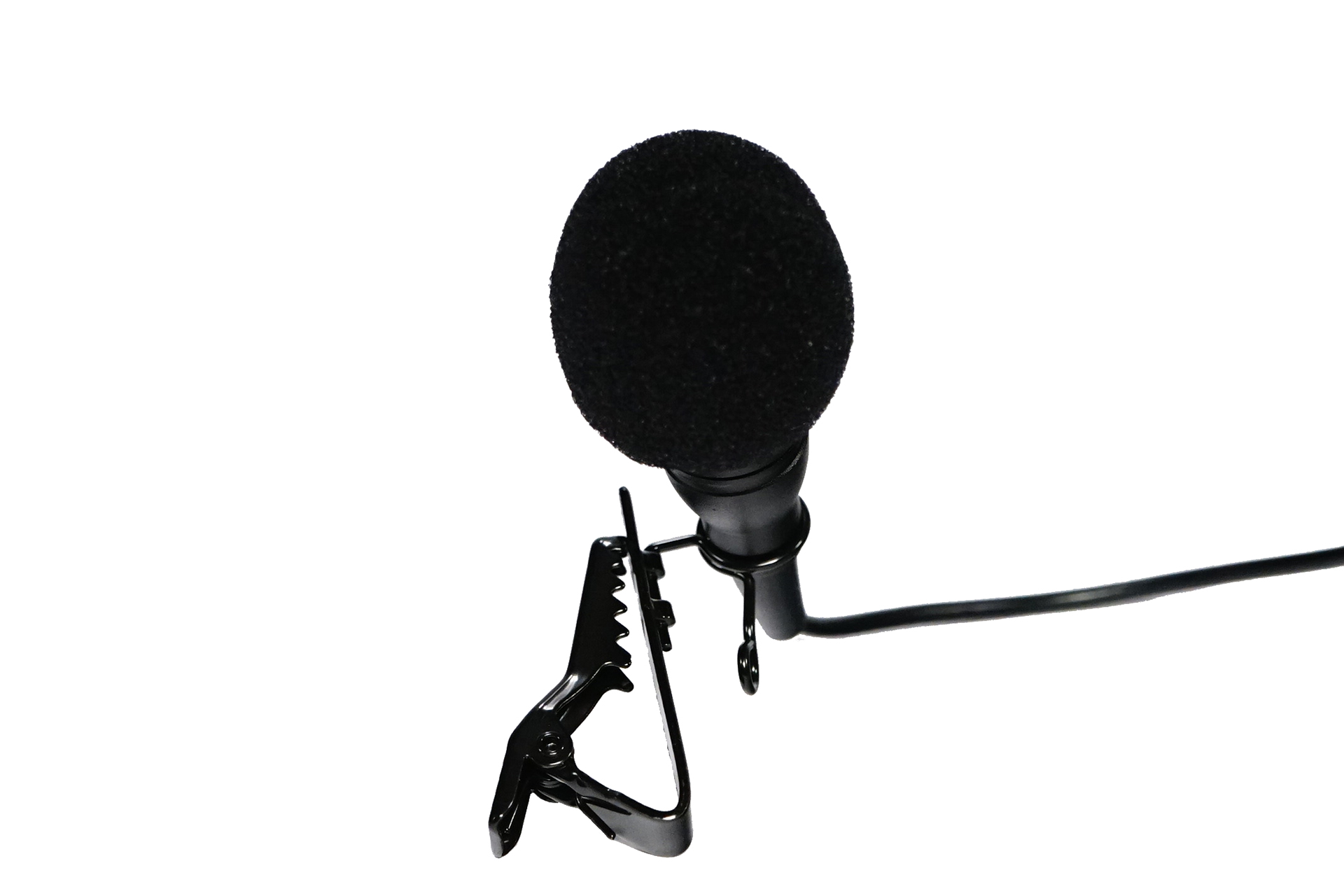

Lavalier Microphone
Polar Pattern： Omni-Directional
Frequency Response：20Hz-20KHz
Output Impedance：680Ω
Max SPL: 100dB（T.H.D ≦1% at 1kHz ）
Sensitivity：-35dB 1V/Pa @ 1KHz
Signal/Noise Ratio: 68dB
Cable Length：1M
