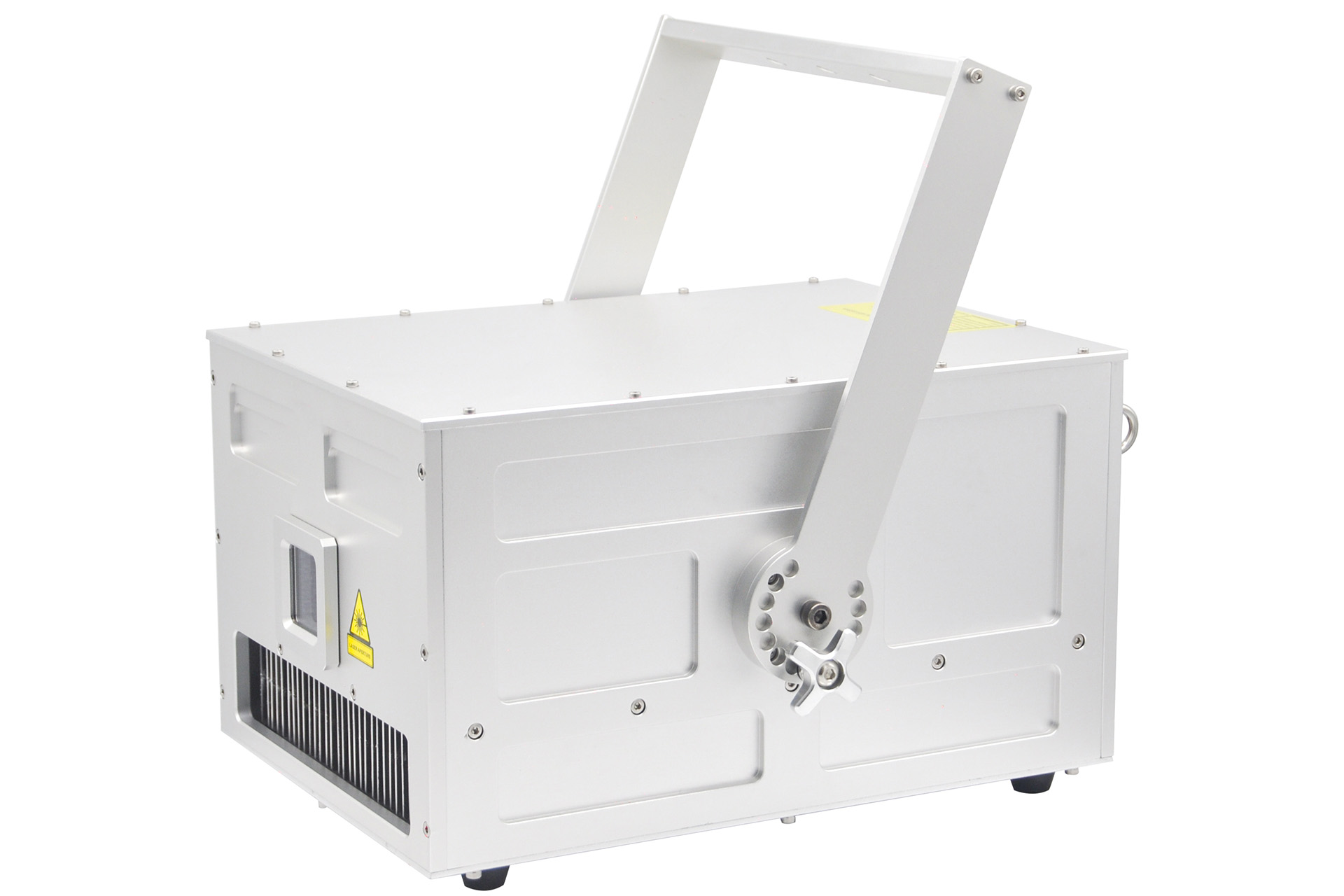

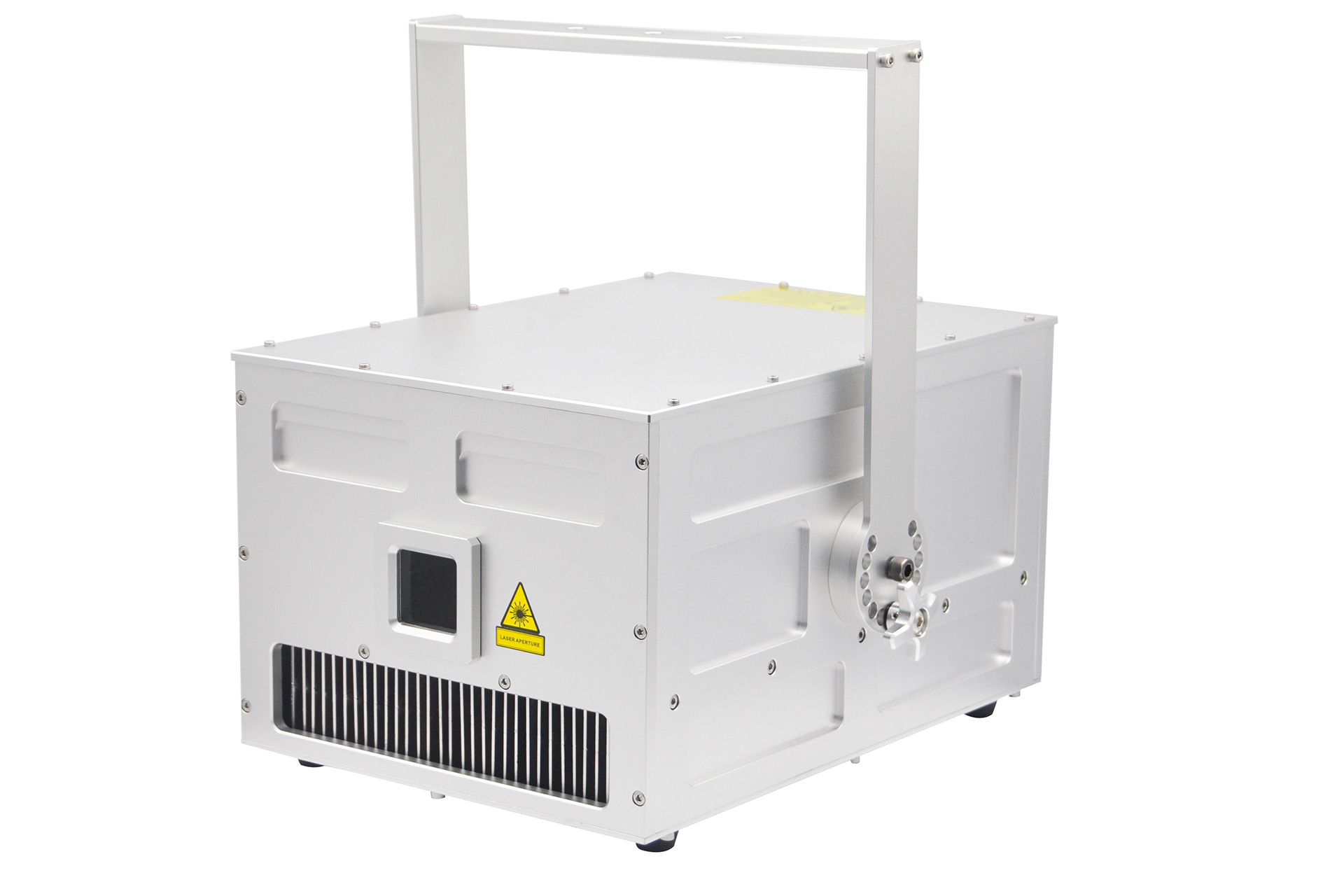

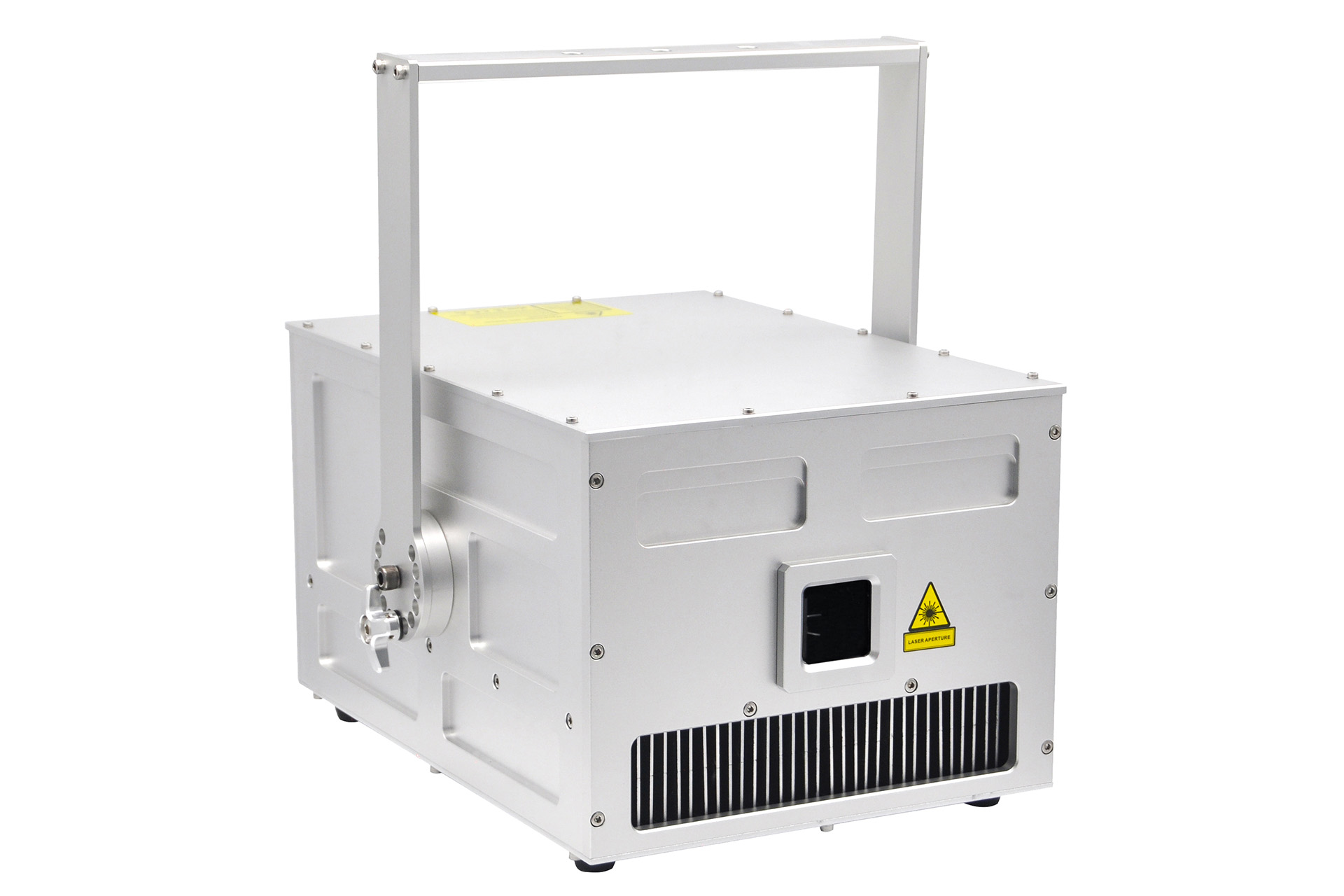

Introducing the Professional Class 3B 20-Watt RGB Laser System, designed for exceptional performance and versatility in various applications. This laser system features IP65 weatherproof protection, ensuring reliable operation in outdoor environments.
Key specifications include:
– **Laser Output**:
– 5.5W Red Laser with a wavelength of 638nm
– 5.5W Green Laser with a wavelength of 525nm
– 9W Blue Laser with a wavelength of 450nm
– **Modulation and Frequency**: Analog modulation with a frequency of 10kHz
– **Scanning Technology**: Equipped with a high-speed 40K optical scanner, offering ±30° wide-angle scanning capabilities
– **Beam Characteristics**:
– Beam Diameter: Less than 5mm
– Divergence: Less than 1.3 mrad
The system supports multiple working modes, including:
– DMX512 (14-channel and 22-channel options)
– ILDA Mode (PC Control)
– Music Mode
– Auto Mode

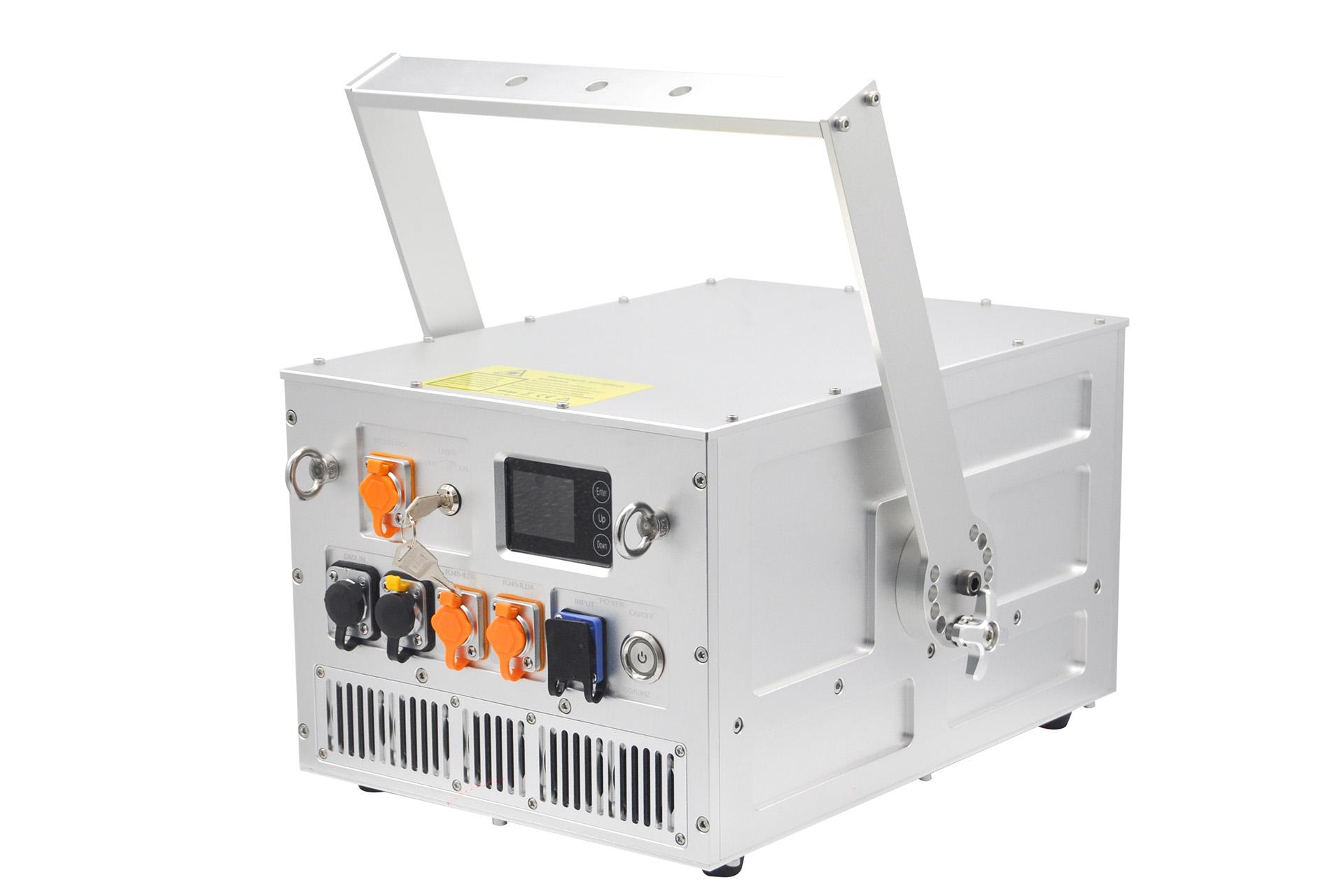

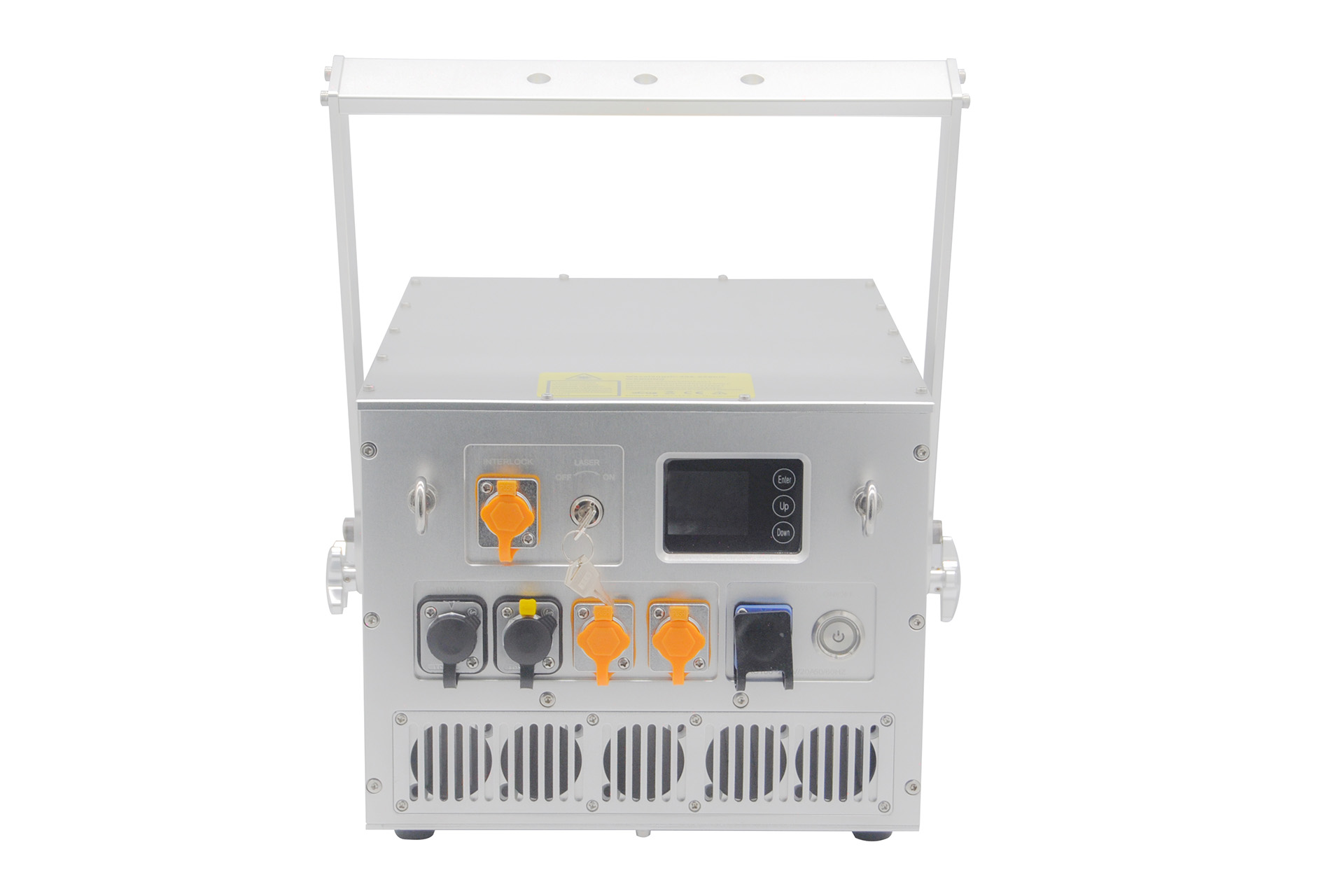

Connectivity options include a 3-pin XLR jack for DMX control and an RJ45 interface for ILDA control and interlock functionality. The system comes preloaded with a variety of show patterns, ready for immediate use.
This advanced RGB laser system is ideal for professional lighting designers, event planners, and entertainment venues seeking to create stunning visual displays.
